    Forged Steel Lift Check Valve Welding TA2 Titanium Check Valve API 602 SW

    Ask Lasest Price
    Brand Name : VERVO
    Model Number : H61Y-800LB
    Certification : API/ISO/CE
    Payment Terms : T/T, L/C, D/P, Western Union
    Supply Ability : 400000
    Delivery Time : 30
    • Product Details
    • Company Profile

    Forged Steel Lift Check Valve Welding TA2 Titanium Check Valve API 602 SW

    TA2 Titanium Alloy Forged Steel Lift Check Valve Welding Check Valve


    Model numberH61W-150LB
    ItemForged steel Check Valve
    CertificationISO9001,ISO14001,ISO18001,CE,TS
    Port Size1 1/2''
    Connection formWelding
    Body materialForged steel TA2
    Structure typeLift check valve
    FeatureEasy disassembly and assembly

    Forged Steel Check Valve

    forged steel check valves are offered in swing type, lift type, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. FBV forged steel check valves are manufactured according to API 602 Design.


    PRODUCT RANGE

    Sizes NPS 1/2 to NPS 4

    Class 800 to Class 2500


    MATERIALS

    Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy


    DESIGN FEATURES

    SW, NPT, RF or BW

    Outside Screw & Yoke (OS&Y)

    Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet


    DESIGN STANDARD

    Design & manufacture according to API 602, ASME B16.34

    End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)

    Test & inspection according to API 598

    Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624

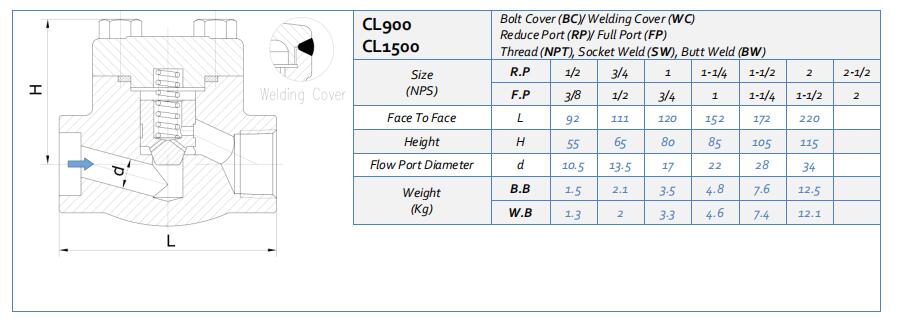

    The dimension and weights are for reference only and subject to change without notice.
    1. For more size or dimensional information, please contact our sales representative.
