ZHEJIANG VERVO VALVE CO.,LTD

ZHEJIANG VERVO VALVE CO.,LTD - A VALVE COMPANY - We Are One of the Biggest Chinese Industrial Valves Manufacturer Specialized in Steel Ball Valves/Steel Gate Valves/ Steel Globe Valves/Steel Check

Active Member

5 Years

Home > Forged Steel Check Valve >

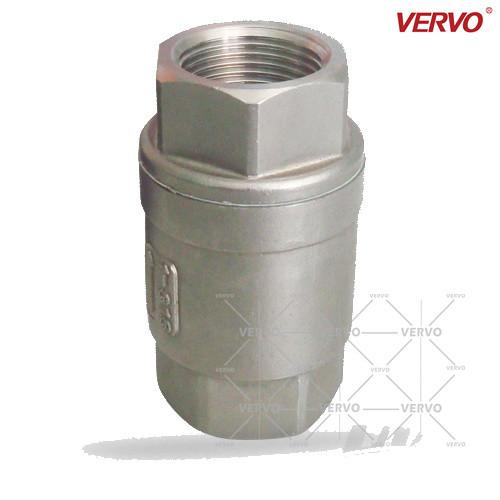

1000wog Stainless Steel Vertical Check Valve Npt-316 1 Inch Asme 16.34 Full Bore

ZHEJIANG VERVO VALVE CO.,LTD
Contact Now
    Buy cheap 1000wog Stainless Steel Vertical Check Valve Npt-316 1 Inch Asme 16.34 Full Bore from wholesalers

    Buy cheap 1000wog Stainless Steel Vertical Check Valve Npt-316 1 Inch Asme 16.34 Full Bore from wholesalers
    • Buy cheap 1000wog Stainless Steel Vertical Check Valve Npt-316 1 Inch Asme 16.34 Full Bore from wholesalers

    1000wog Stainless Steel Vertical Check Valve Npt-316 1 Inch Asme 16.34 Full Bore

    Ask Lasest Price
    Brand Name : VERVO
    Model Number : S41-1000WOG-1INCH
    Certification : API/ISO/CE
    Payment Terms : T/T, L/C, D/P, Western Union
    Supply Ability : 400000
    Delivery Time : 30
    • Product Details
    • Company Profile

    1000wog Stainless Steel Vertical Check Valve Npt-316 1 Inch Asme 16.34 Full Bore

    Vertical Check Valve 1 Inch 1000wog Asme 16.34 Npt-316 full bore


    ItemCheck Valve
    CertificationISO9001,ISO14001,ISO18001,TS,CE
    BrandVERVO
    Model numberH41Y-300LB
    Port Size2''
    Structure typelift /swingcheck valve
    Pressure300LB
    Temperature-46-325
    Connection formFlanged
    MaterialStainless Steel
    FeatureEasy disassembly

    Forged Steel Check Valve

    forged steel check valves are offered in swing type, lift type, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. FBV forged steel check valves are manufactured according to API 602 Design.


    PRODUCT RANGE

    Sizes NPS 1/2 to NPS 4

    Class 800 to Class 2500


    MATERIALS

    Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy


    DESIGN FEATURES

    SW, NPT, RF or BW

    Outside Screw & Yoke (OS&Y)

    Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet


    DESIGN STANDARD

    Design & manufacture according to API 602, ASME B16.34

    End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)

    Test & inspection according to API 598

    Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624

    The dimension and weights are for reference only and subject to change without notice.
    1. For more size or dimensional information, please contact our sales representative.
