Forged Steel Globe Control Valve Stainless Steel F316 Flanged Angle

    Buy cheap Forged Steel Globe Control Valve Stainless Steel F316 Flanged Angle from wholesalers

    Buy cheap Forged Steel Globe Control Valve Stainless Steel F316 Flanged Angle from wholesalers
    • Buy cheap Forged Steel Globe Control Valve Stainless Steel F316 Flanged Angle from wholesalers
    • Buy cheap Forged Steel Globe Control Valve Stainless Steel F316 Flanged Angle from wholesalers
    • Buy cheap Forged Steel Globe Control Valve Stainless Steel F316 Flanged Angle from wholesalers
    • Buy cheap Forged Steel Globe Control Valve Stainless Steel F316 Flanged Angle from wholesalers
    • Buy cheap Forged Steel Globe Control Valve Stainless Steel F316 Flanged Angle from wholesalers
    • Buy cheap Forged Steel Globe Control Valve Stainless Steel F316 Flanged Angle from wholesalers

    Forged Steel Globe Control Valve Stainless Steel F316 Flanged Angle

    Ask Lasest Price
    Brand Name : VERVO
    Model Number : J41Y-600LB
    Certification : API/CE/ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, D/A
    Supply Ability : 40000pcs/month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Forged Steel Globe Control Valve Stainless Steel F316 Flanged Angle

    Model numberJ24Y-100
    ItemGlobe Valve
    CertificationISO9001,ISO14001,ISO18001,TS,CE
    Connection formFlange
    Body materialStainless Steel
    Seal materialGasket
    FeatureEasy disassembly and assembly

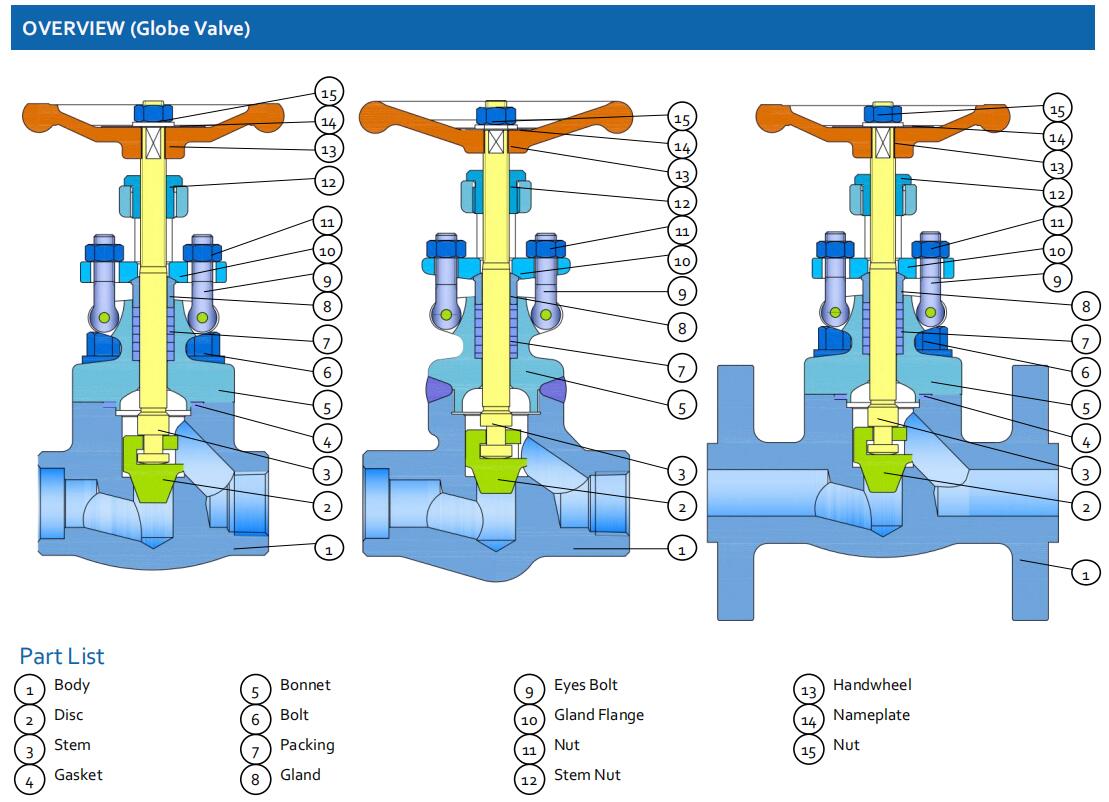

    VERVO forged steel globe valves are offered in straight pattern, Y-pattern, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO forged steel globe valves are manufactured according to API 602 Design.


    PRODUCT RANGE

    Sizes NPS 1/2 to NPS 4

    Class 800 to Class 2500


    MATERIALS

    Available in Forged (A105, A350 LF2, A182 F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy


    DESIGN FEATURES

    SW, NPT, RF, or BW

    Outside Screw & Yoke (OS&Y)

    Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet


    DESIGN STANDARD

    Design & manufacture according to API 602, ASME B16.34

    End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)

    Test & inspection according to API 598

    Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624

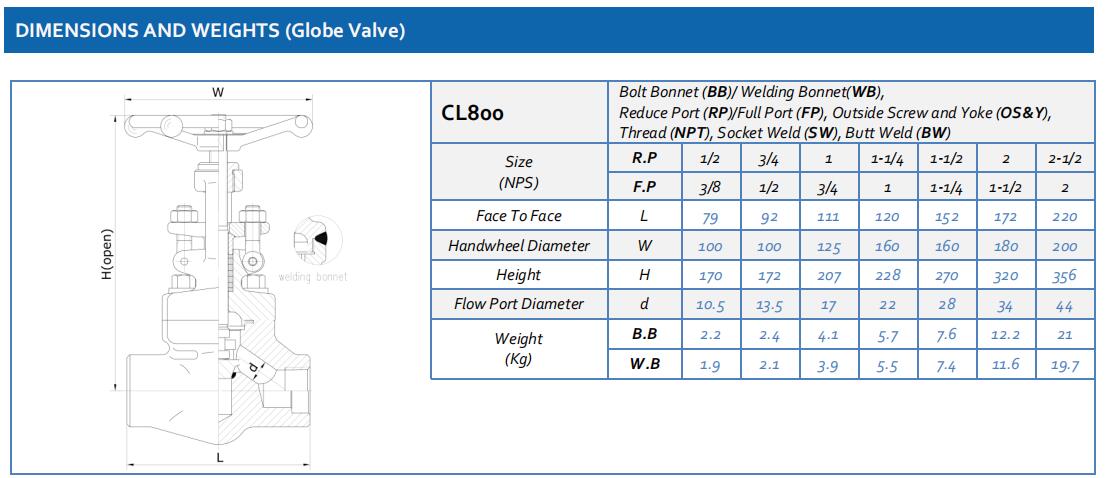

    The dimension and weights are for reference only and subject to change without notice.
    1. For more size or dimensional information, please contact our sales representative.
