1500LB Pressure Seal Cover Swing Check Valve 10 Inch Swing Check
Valve DN250 Wcb Full Bore Swing Check Valve Suppliers
| Item | 10 Inch Swing Check Valve |
| Certification | ISO9001,ISO14001,ISO18001,TS,CE,API |
| Brand | VERVO |
| Model number | H41Y-CL1500-10INCH |
| Port Size | 10INCH/DN250 |
| Structure type | Pressure Seal Cover Swing Check Valve |
| Pressure | 00LB |
| Temperature | -29~429Degree |
| Connection form | Butt Welding |
| Material | Carbon Steel A216 WCB |
| Feature | Easy disassembly |
SWING CHECK VALVE
VERVO swing check valves are offered in bolted bonnet and welded
bonnet design in a wide range of carbon, stainless steel, duplex
stainless steel, alloy and other special materials. VERVO swing
check valves are manufactured according to API 6D, BS 1868 Design.
PRODUCT RANGE
Sizes NPS 2 to NPS 36
Class 150 to Class 2500
MATERIALS
Available in Casting (A216 WCB, WC6, WC9, A350 LCB, A351 CF8, CF8M,
CF3, CF3M, A995 4A, A995 5A, A995 6A), Alloy 20, Monel, Inconel,
Hastelloy
DESIGN FEATURES
Full or Reduced Bore
RF, RTJ, or BW
Bolted Cover or Pressure Seal Cover
DESIGN STANDARD
Design & manufacture according to API 6D, BS 1868
Face-to-face according to ASME B16.10
End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103
ASME CLASS 1500 (PN 250)

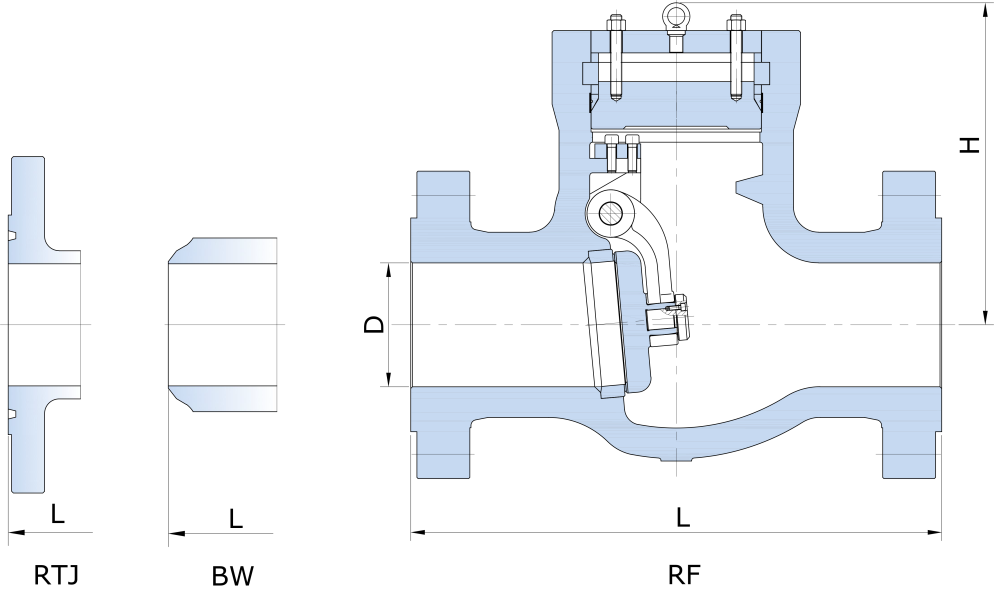

Size in/mm |
D | L |
H | Weight (lb/kg) |
| RF | RTJ | BW | RF/RTJ |
2 50 | 1.89 48 | 14.5 368 | 14.61 371 | 8.5 216 | 9.65 245 | 62 28 |
2 ½ 65 | 2.24 57 | 16.5 419 | 16.61 422 | 10 254 | 10.24 260 | 79 36 |
3 80 | 2.76 70 | 18.5 470 | 18.62 473 | 12 305 | 11.81 300 | 110 50 |
4 100 | 3.58 91 | 21.5 546 | 21.61 549 | 16 406 | 13.39 340 | 176 80 |
6 150 | 5.35 136 | 27.76 705 | 28 711 | 19 483 | 16.93 430 | 639 290 |
8 200 | 7 178 | 32.76 832 | 33.15 842 | 28 711 | 20.87 530 | 1079 490 |
10 250 | 8.74 222 | 39 991 | 39.41 1001 | 34 864 | 22.44 570 | 1652 750 |
12 300 | 10.35 263 | 44.5 1130 | 45.12 1146 | 39 991 | 25.2 640 | 2423 1100 |
14 350 | 11.38 289 | 49.5 1257 | 50.24 1276 | 42 1067 | 27.56 700 | 3084 1400 |
16 400 | 13 330 | 54.5 1384 | 55.35 1406 | 47 1194 | 30.31 770 | 3524 1600 |
ASME CLASS 2500 (PN 420)
Size in/mm |
D | L |
H | Weight (lb/kg) |
| RF | RTJ | BW | RF/RTJ |
2 50 | 1.5 38 | 17.76 451 | 17.87 454 | 11 279 | 9.84 250 | 132 60 |
2 ½ 65 | 1.89 48 | 20 508 | 20.24 514 | 13 330 | 11 280 | 187 85 |
3 80 | 2.24 57 | 22.76 578 | 23 584 | 14.5 368 | 11.81 300 | 220 100 |
4 100 | 2.87 73 | 26.5 673 | 26.89 683 | 18 457 | 13.58 345 | 363 165 |
6 150 | 4.37 111 | 35.98 914 | 36.5 927 | 24 610 | 17.32 440 | 1013 460 |
8 200 | 5.75 146 | 40.24 1022 | 40.87 1038 | 30 762 | 21.06 535 | 1982 900 |
10 250 | 7.24 184 | 50 1270 | 54.8 1392 | 36 914 | 22.83 580 | 2863 1300 |
12 300 | 8.62 219 | 55.98 1422 | 56.89 1445 | 10.94 1040 | 26 660 | 3965 1800 |
The dimension and weights are for reference only and subject to
change without notice.
1. For more size or dimensional information, please contact our
sales representative.
