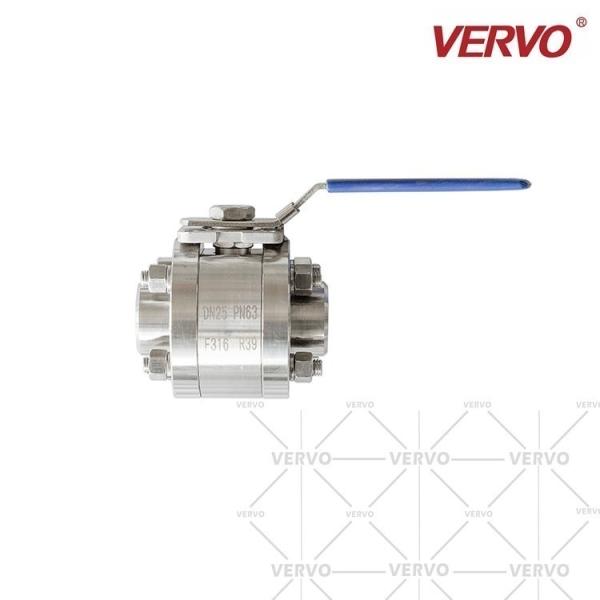

DN25 Ball Valve Stainless Steel F316 1'' With Locking Device
Floating Type Three Piece Type Socket Weld Ball Valve
| Item | Valve |
| Type | Ball Valve |
| Certification | CE,TS,ISO9001,ISO14001,ISO18001,API |
| Brand | VERVO |
| Model number | Q11F-PN63 |
| Power | Manual |
| Port Size | 1" |
| Structure | Ball,Floating |
| Pressure | High perssure |
| Temperature | -46~200 |
| Medium | Weak acid base medium |
| Connection form | Thread |
| Body material | Stainless Steel F316 |
| Seal material | Gasket |
Quick Detail
VERVO floating ball valves are offered in 2 PC side entry, 3 PC side
entry or welded body design in a wide range of carbon, stainless
steel, duplex stainless steel, alloy and other special materials. VERVO floating ball valves are manufactured according to API 6D or API
608 Design and fire tested per API 6FA and API 607 Standard.
| Main Material | Can ensure us impose reliable control in metal material like
casting and forging. |
| Standard | DIN/ ANSI /BS/ JIS /CNS |
| Color | As Custom |
| Main Market | Southeast Asia,The Middle Eas,North Africa,South America |
| Certificate | ISO 9001, API 600, API 6D , API Q1, CE/PED etc |
| Advantage | We are one of the leading manufacturers in china to supply quality
valve solutions for oil, gas, refinery, chemistry, marine, power
plant, pipeline transmit industries etc.; |
| Application | Industry,electric power,petrochemistry,coal gas channel etc. |
DESIGN STANDARD
Design & manufacture according to API 6D, API 608, ISO 17292
Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard
End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
Test & inspection according to API 6D, API 598
Fire safe design according to API 6FA, API 607
Also available per NACE MR-0175, NACE MR-0103, ISO 15848
| CLASS 800LB/1500LB |
| SIZE | L | D | S | W | H | Weght kg) |
| DN(mm) | NPS (in) |
| 15 | 1/2'' | 92 | 125 | 21.8 | 141 | 66 | 1.7 |
| 20 | 3/4'' | 112 | 17 | 27.2 | 141 | 72 | 2.7 |
| 25 | 1'' | 126 | 24 | 339 | 198 | 100 | 4.7 |
| 40 | 1 1/2'' | 152 | 37 | 438 | 239 | 112 | 9.5 |
| 50 | 2'' | 176 | 49 | 61.2 | 239 | 122 | 145 |
| CLASS 800LB/1500LB(with 100mmpup nipples on both ends) |
| SIZE | L | D | S | W | H | Weght kg) |
| DN(mm) | NPS (in) |
| 15 | 1/2'' | 92 | 100 | 12.5 | 141 | 66 | 2 |
| 20 | 3/4'' | 112 | 100 | 17 | 141 | 72 | 33 |
| 25 | 1'' | 126 | 100 | 24 | 198 | 100 | 5.5 |
| 40 | 1 1/2'' | 152 | 100 | 37 | 239 | 112 | 11 |
| 50 | 2'' | 176 | 100 | 49 | 239 | 122 | 17.5 |
Company Information
We are one of the leading manufacturers in china to supply quality
valve solutions for oil, gas, refinery, chemistry, marine, power plant, pipeline transmit industries etc.; We provide full range of
industrial valves products, include Gate valve, Globe valve, Check
valve, Ball valve, Plug valve, Butterfly valve, strainer etc. of
different types ,sizes and material, Available standard include
API, BS,JIS, EN, DIN, GOST etc.
All our branch factories have strict Quality control system as per
ISO 9001, API 600, API 6D , API Q1, CE/PED etc. so our products are
designed and manufactured strictly as per client's requirements and
latest manufacturing specification of international standards
organization
