Pressure Seal Gate Valve Forged Steel API602 2 Inch Dn50 2500LB RTJ Flange Gate Valve Metal Seated Gate Valve

Quick Detail

General Introduction

VERVO forged steel valve has the advantages of small volume and compact type. Bolted bonnet, welded bonnet, pressure bonnet, bellow seal bonnet, high/low temperature extended bonnet and ISO 15848 fugitive emission designed valves are available upon different request of services.

Forged Steel Gate Valve

VERVO forged steel gate vales adopts solid gate, renewable seat, rising stem and non-ring hand wheel. It plays the role of pipe opening and closing ultimately through the rotation of the hand wheel to drive the lifting of gate.

SPECIFICATIONS

1) Valve Size : 1/2" ~ 6"
2) Applicable Rating : ASME 1500# ~ 4500#
3) Temperature : Up to 500℃
4) Code & Standard : API, BS, ASME, ASTM
Designed by ASME B16.11 / 16.25 / 16.34 / 16.5
5) Constructions
• End Connection : Socket-Welded or Flanged Type
• PSB (=Pressure-Seal Bonnet) Type
• Full Bore
• Manual or Motor Operated
(Pneumatic, Electric, or Hydraulic)

PSB GLOBE VALVE DIMENSION

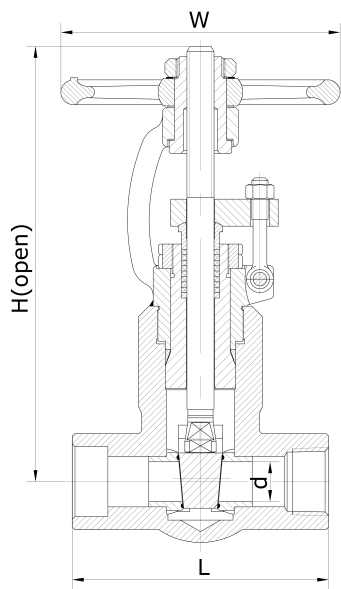

CL900~CL2500	Pressure Seal Bonnet (PSB), Full Port (FP), Outside Screw and Yoke (OS&Y), Thread(NPT), Socket Weld(SW), Butt Weld (BW)
Size (NPS)		F.P	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	CL900 CL1500	L	140	140	140	140	178	178	216
	CL2500		182	182	182	182	232	232	272
Handwheel Diameter	CL900 CL1500 CL2500	W	200	200	200	200	280	280	300
Height	CL900 CL1500	H	308	308	315	315	446	446	540
	CL2500		325	325	325	325	460	460	550
Flow Port Diameter		d	8	10.3	13.5	18	23	29	36
Weight (Kg)	CL900 CL1500	PSB	9	9	9	9	26	26	36
	CL2500		11.9	11.9	11.8	11.7	30	28	42

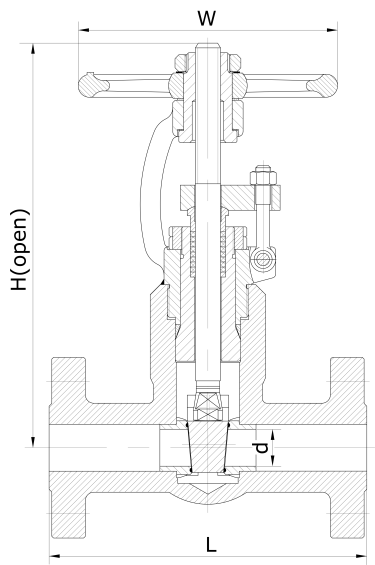

CL900~CL2500	Pressure Seal Bonnet (PSB), Full Port (FP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ)
Size (NPS)		F.P	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	CL900 CL1500	L (RF)		216	229	254	279	305	368
	CL2500			264	273	308	349	384	451
Handwheel Diameter	CL900 CL1500 CL2500	W		200	200	200	280	280	300
Height	CL900 CL1500	H		308	315	315	446	446	540
	CL2500			325	325	325	460	460	550
Flow Port Diameter		d		10.3	13.5	18	23	29	36
Weight (Kg)	CL900 CL1500	PSB		11.9	13.7	18	36.8	37	45
	CL2500			13	17	22	30	42	58
