High Pressure Check Valve Oil Check Valve Flap 1 Inch Dn25 900lb Rf Flanged Vertical Forged Steel Swing Check Valve

VERVO swing check valve has typically a globe style valve body with a hinged valve disc, to block reverse flow. The valve seat is typically full-ported in an angled our straight thru. VERVO offer several different type of swing check valves for water and wastewater applications.

Swing Check Valve

Swing check valves are normally recommended for water and wastewater systems applications because of the simple construction, low pressure drop across the valve, and field serviceability.

Swing check valves are available in either metal-to-metal seat or resilient seating. Resilient seated swing check valves are usually recommended for wastewater or services where dirt or other particles may be present in the fluid and positive shutoff is required.

Typically a swing check valve operation depends on gravity (weight of disc) and reverse flow. The pivot point of the swing check is outside the periphery of the disc and, the greater the flow velocity and head pressure possibility the greater the valve closing force. To prevent the slamming of the disc and reducing hydraulic shocks external hinge arm is available with either a lever weight or an adjustable spring.

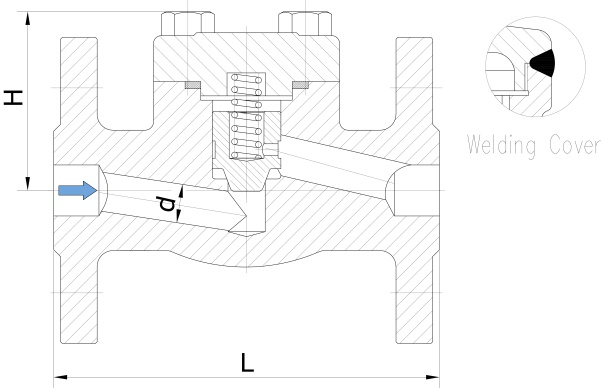

DIMENSIONS AND WEIGHTS (Check Valve )

CL800 CL900~CL1500		Bolt Cover (BC)/ Welding Cover (WC) Full Port (FP) Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS)		F.P	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	CL800	L	100	100	120	140	140	172
	CL900 CL1500		100	120	140	140	172	220
Height		H	70	70	70	100	110	120
Flow Port Diameter		d	13.5	17	22	28	34	44
Weight (Kg)	CL800	B.B	2.2	2.2	2.2	4.2	9	9
		W.B	2.1	2.1	2.1	4	8.8	8.8
	CL900 CL1500	B.B	4.2	9	9	10	18.6	20
		W.B	4	8.8	8.8	9.7	18.2	19.5
CL150~CL600		Bolt Cover (BC)/ Welding Cover (WC) Reduce Port (RP), Flanged (RF/RTJ)
Size (NPS)		R.P	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	CL150	L (RF)	108	117	127	140	165	203
	CL300		152	178	203	216	229	267
	CL600		165	190	216	229	241	292
Height		H	55	55	65	80	85	105
Flow Port Diameter		d	10.5	13.5	17	22	28	34
Weight (Kg)	CL150	B.B	3.5	3.5	4.7	8.5	11.5	13
	CL300		3.5	3.5	5.6	8.6	12	14
	CL600		3.5	3.5	6.5	10.5	16	22
CL900 CL1500		Bolt Cover (BC)/ Welding Cover (WC) Reduce Port (RP), Flanged (RF/RTJ)
Size (NPS)		R.P	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	CL900 CL1500	L (RF)	216	229	254	279	305	368
Height		H	55	55	65	80	85	105
Flow Port Diameter		d	10.5	13.5	17	22	28	34
Weight (Kg)	CL150 CL300	B.B	4.5	5.8	8.7	14.5	22	32

1.The dimension and weights are for reference only and subject to change without notice.

2.The flanged valve are defaulted by integral flange.

3.For more size or dimensional information, please contact our sales representative.

FAQ

1/Do you have any Certification ?

Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1

2/Can we visit your factory?

Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3/Do you have quality control system?

Yes, we have ISO/PED certifications and our own quality control laboratory.

4/Can you arrange the shipment for us?

Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.

5/Can I get some samples?

We are glad to provide free samples to you, but the express fee will be on your charge.

6/What is your after-sale service?

We provide after-sale service and offer 100% guarantee on our products.

7/What is your main products?

Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.

8/Are you trading company or manufacturer

We are factory, and welcome to visit our factory

9/What is your MOQ

No MOQ, As your request .Normal size and material we have stock
