DN25 1 Piece Type Ball Valve 25mm Ball Valve Floating Ball Valve Low Pressure Stainless Steel One Piece Ball Valve

ZHEJIANG VERVO VALVE CO.,LTD
Contact Now
    Buy cheap DN25 1 Piece Type Ball Valve 25mm Ball Valve Floating Ball Valve Low Pressure Stainless Steel One Piece Ball Valve from wholesalers

    Buy cheap DN25 1 Piece Type Ball Valve 25mm Ball Valve Floating Ball Valve Low Pressure Stainless Steel One Piece Ball Valve from wholesalers
    • Buy cheap DN25 1 Piece Type Ball Valve 25mm Ball Valve Floating Ball Valve Low Pressure Stainless Steel One Piece Ball Valve from wholesalers

    DN25 1 Piece Type Ball Valve 25mm Ball Valve Floating Ball Valve Low Pressure Stainless Steel One Piece Ball Valve

    Ask Lasest Price
    Brand Name : VERVO
    Model Number : Q11F-DN25-1000PSI
    Certification : API/ISO/CE
    Payment Terms : T/T, L/C, D/P, Western Union
    Supply Ability : 400000
    Delivery Time : 30
    • Product Details
    • Company Profile

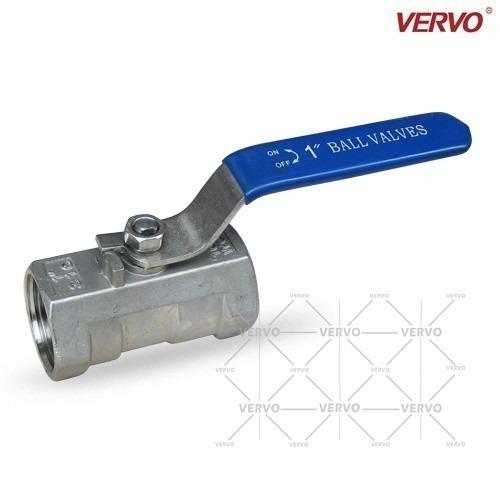

    DN25 1 Piece Type Ball Valve 25mm Ball Valve Floating Ball Valve Low Pressure Stainless Steel One Piece Ball Valve

    DN25 1 Piece Type Ball Valve 25mm Ball Valve Floating Ball Valve Low Pressure Stainless Steel One Piece Ball Valve


    1/4" - 4" stainless steel 1 Piece Ball valve

    The One Piece Ball valve as the name suggests is made out of one body piece unlike the 2 and 3 piece. This means the valve cannot be taken apart for cleaning. The advantage is that the valve will be low cost and robust. As a result of the valve body being one piece is that a smaller ball has to be used leading to a reduced port, more commonly called a reduced bore. This means that flow is reduced through the valve, since the ball bore is one size smaller than the pipe size.
    * Threaded Ports FNPT by FNPT for standard Pipe Connection
    * Reduced/Standard Port Ball Valve
    * Stem is Blow Out Proof
    * Pressure Rating 1000 PSI, Suitable for Standard Uses
    * PTFE Seat and Seal, suitable for High Heat and Chemical Applications
    * Sizes Start from 1/2" up to 2
    A One piece ball valve is known for its low cost and Robust design. Like our other threaded ball valves, the 1 piece comes with female NPT threads on both ports. Commonly used in standard applications where a study valve is required and a reduced flow is not important to the application. Our 1-piece valves are made with quality grade 316 stainless steel, designed with a reduced port,pressure rated at 1000 PSI WOG (Water, Oil, Gas).
    Dimention
    SIZE
    фd
    L
    H
    W
    N.M
    KGS
    1/4''
    DN6
    5
    40
    32
    68
    12
    0.07
    3/8"
    DN10
    7
    45
    33
    68
    12
    0.13
    1/2"
    DN15
    9
    56
    42
    95
    13
    0.17
    3/4"
    DN20
    12.5
    59
    45
    95
    20
    0.25
    1"
    DN25
    15
    71
    48
    95
    38
    0.42
    1-1/4"
    DN32
    20
    76
    58
    106
    50
    0.68
    1-1/2"
    DN40
    25
    84
    67
    128
    72
    0.85
    2"
    DN50
    32
    99
    74
    130
    90
    1.39
    2-1/2"
    DN65
    38
    110
    85
    170
    360
    1.98
    3"
    DN80
    50
    132
    85
    170
    600
    3.6
    4"
    DN100
    64
    180
    121.5
    225
    950
    7.47

    Keywords of DN25 1 Piece Type Ball Valve 25mm Ball Valve Floating Ball Valve Low Pressure Stainless Steel One Piece Ball Valve

    Casting Steel Floating Ball Valve, Floating Ball Valve, 1000PSI Ball Valve, 1 Inch Ball Valve, API608 Ball Valve,One Piece Ball Valve,Soft Seated Ball Valve,1 Piece Ball Valve
