DN32 Cast Steel Ball Valve WCB Silica Sol Precision flange connection soft seated floating ball valve 2 piece
| Item | Valve |
| Type | Ball Valve |
| Certification | CE,TS,ISO9001,ISO14001,ISO18001 |
| Brand | VERVO |
| Model number | Q41-PN25 |
| Power | Manual |
| Port Size | 1 1/4" |
| Structure | Ball,Floating |
| Pressure | Low perssure |
| Temperature | -29~180 |
| Medium | Water,Steam,Oil |
| Connection form | Flange |
| Body material | Casting |
| Seal material | Gasket |
| Feature | Full Diameter,Full Port |
VERVO floating ball valves are offered in 2 PC side entry, 3 PC side entry or welded body design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO floating ball valves are manufactured according to API 6D or API 608 Design and fire tested per API 6FA and API 607 Standard.
PRODUCT RANGE
Sizes NPS 2 to NPS 16
Class 150 to Class 2500
MATERIALS
Available: Casting A216-WCB (Carbon Steel), A217-WC6 (1-1/4Cr-1/2Mo), A217-WC9 (2-1⁄4Cr–1Mo), A217-C5 (5Cr–1⁄2Mo), A217-C12 (9Cr–1Mo), A352-LCB (Carbon Steel), A352-LCC (Carbon Steel), A351-CF8M (18Cr–9Ni–2Mo), A351-CF3M (18Cr–9Ni–2Mo)
DESIGN FEATURES
Full or Reduced Bore
RF, RTJ, or BW
Bolted bonnet or welded body design
Anti-Static Device
Anti-Blow out Stem
Cryogenic or High Temperature, Extended Stem
DESIGN STANDARD
Design & manufacture according to API 6D, API 608, ISO 17292
Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard
End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
Test & inspection according to API 6D, API 598
Fire safe design according to API 6FA, API 607
Also available per NACE MR-0175, NACE MR-0103, ISO 15848

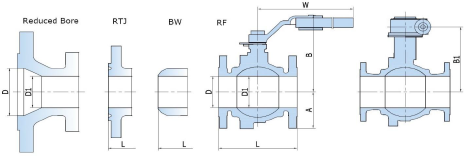

ASME CLASS 150 (PN 20) FULL BORE
| Size | D | D1 | L | Casting | Forging | Casting | Weight Forging |
| in/mm | | | RF | RTJ | BW | A | B | B1 | W | A | B | B1 | W | (lb/kg) | (lb/kg) |
| ½ | 0.5 | 0.5 | 4.25 | - | 4.25 | 1.77 | 3.15 | 4.89 | 7.87 | 1.77 | 3.15 | 4.33 | 7.87 | 6 | 7 |
| 15 | 12.7 | 12.7 | 108 | | 108 | 45 | 80 | 114 | 200 | 45 | 80 | 110 | 200 | 2.5 | 3 |
| ¾ | 0.75 | 0.75 | 4.62 | - | 4.62 | 1.97 | 3.47 | 5.31 | 7.87 | 1.97 | 3.35 | 5.11 | 7.87 | 8 | 9 |
| 20 | 19.1 | 19.1 | 117 | | 117 | 50 | 85 | 135 | 200 | 50 | 85 | 130 | 200 | 3.5 | 4 |
| 1 | 1 | 1 | 5 | 5.5 | 5 | 2.16 | 3.54 | 6.3 | 7.87 | 2.16 | 3.54 | 6.1 | 7.87 | 12 | 15 |
| 25 | 25.4 | 25.4 | 127 | 140 | 127 | 55 | 90 | 160 | 200 | 55 | 90 | 155 | 200 | 5.6 | 6.5 |
| 1¼ | 1.25 | 1.25 | 5.5 | 6 | 5.5 | 2.36 | 4.33 | 6.70 | 9.84 | 2.36 | 4.33 | 6.5 | 9.84 | 14 | 21 |
| 32 | 31.8 | 31.8 | 140 | 153 | 140 | 60 | 110 | 170 | 250 | 60 | 110 | 165 | 250 | 6.2 | 9.4 |
| 1½ | 1.5 | 1.5 | 6.5 | 7 | 6.5 | 2.48 | 4.53 | 7.10 | 13 | 2.48 | 4.53 | 6.97 | 13 | 16 | 17 |
| 40 | 38.1 | 38.1 | 165 | 178 | 165 | 63 | 115 | 180 | 330 | 63 | 115 | 177 | 330 | 7 | 12 |
| 2 | 1.94 | 1.94 | 7 | 7.5 | 7 | 3 | 5.9 | 7.5 | 13 | 3 | 5.6 | 7.32 | 13 | 29 | 35 |
| 50 | 49 | 49 | 178 | 191 | 178 | 76 | 150 | 191 | 330 | 76 | 142 | 186 | 330 | 13 | 16 |
| 2½ | 2.44 | 2.44 | 7.5 | 8 | 7.5 | 3.45 | 6.1 | 7.83 | 13 | 3.45 | 5.9 | 7.67 | 13 | 35 | 44 |
| 65 | 62 | 62 | 191 | 203 | 191 | 85 | 155 | 200 | 330 | 85 | 150 | 195 | 330 | 16 | 20 |
| 3 | 2.91 | 2.91 | 8 | 8.5 | 8 | 3.74 | 6.3 | 8.46 | 13 | 3.74 | 6.1 | 8.1 | 13 | 49 | 64 |
| 80 | 74 | 74 | 203 | 216 | 203 | 95 | 160 | 215 | 330 | 95 | 155 | 206 | 330 | 22 | 29 |
| 4 | 3.94 | 3.94 | 9 | 9.5 | 9 | 4.33 | 8.27 | 10.04 | 18.11 | 4.33 | 7.67 | 9.5 | 18.11 | 83 | 106 |
| 100 | 100 | 100 | 229 | 242 | 229 | 110 | 210 | 255 | 460 | 110 | 195 | 242 | 460 | 37.5 | 48 |
| 6 | 5.91 | 5.91 | 15.5 | 16 | 15.5 | 6.70 | 12.2 | 12.87 | 30.3 | 6.70 | 11.22 | 12.44 | 30.3 | 216 | 304 |
| 150 | 150 | 150 | 394 | 407 | 394 | 170 | 310 | 327 | 770 | 170 | 285 | 316 | 770 | 98 | 138 |
ASME CLASS 150 (PN 20) REDUCED BORE
| Size | D | D1 | L | Casting | Forging | Casting | Weight Forging |
| in/mm | | | RF | RTJ | BW | A | B | B1 | W | A | B | B1 | W | (lb/kg) | (lb/kg) |
| ½ | 0.5 | 0.375 | 4.25 | - | 4.25 | 1.77 | 3.15 | 4.89 | 7.87 | 1.77 | 3.15 | 4.33 | 7.87 | 6 | 7 |
| 15 | 12.7 | 9.5 | 108 | | 108 | 45 | 80 | 114 | 200 | 45 | 80 | 110 | 200 | 2.5 | 3 |
| ¾ | 0.75 | 0.5 | 4.62 | - | 4.62 | 1.97 | 3.15 | 4.89 | 7.87 | 1.97 | 3.35 | 5.11 | 7.87 | 7 | 8 |
| 20 | 19.1 | 12.7 | 117 | | 117 | 50 | 80 | 114 | 200 | 50 | 85 | 130 | 200 | 3 | 3.5 |
| 1 | 1 | 0.75 | 5 | 5.5 | 5 | 2.16 | 3.47 | 5.31 | 7.87 | 2.16 | 3.54 | 6.1 | 7.87 | 10 | 12 |
| 25 | 25.4 | 19.1 | 127 | 140 | 127 | 55 | 85 | 135 | 200 | 55 | 90 | 155 | 200 | 4.5 | 5.5 |
| 1¼ | 1.25 | 1 | 5.5 | 6 | 5.5 | 2.36 | 3.54 | 6.3 | 7.87 | 2.36 | 4.33 | 6.5 | 9.84 | 12 | 16 |
| 32 | 31.8 | 25.4 | 140 | 153 | 140 | 60 | 90 | 160 | 200 | 60 | 110 | 165 | 250 | 5.5 | 7.2 |
| 1½ | 1.5 | 1.25 | 6.5 | 7 | 6.5 | 2.48 | 4.33 | 6.70 | 9.84 | 2.48 | 4.53 | 6.97 | 13 | 14 | 18 |
| 40 | 38.1 | 31.8 | 165 | 178 | 165 | 63 | 110 | 170 | 250 | 63 | 115 | 177 | 330 | 6.3 | 8 |
| 2 | 1.94 | 1.5 | 7 | 7.5 | 7 | 3 | 4.53 | 7.10 | 13 | 3 | 5.6 | 7.32 | 13 | 20 | 30 |
| 50 | 49 | 38.1 | 178 | 191 | 178 | 76 | 115 | 180 | 330 | 76 | 142 | 186 | 330 | 9 | 13.5 |
| 2½ | 2.44 | 1.94 | 7.5 | 8 | 7.5 | 3.45 | 5.9 | 7.5 | 13 | 3.45 | 5.9 | 7.67 | 13 | 32 | 39 |
| 65 | 62 | 49 | 191 | 203 | 191 | 85 | 150 | 191 | 330 | 85 | 150 | 195 | 330 | 14.5 | 17.5 |
| 3 | 2.91 | 1.94 | 8 | 8.5 | 8 | 3.74 | 6.1 | 7.83 | 13 | 3.74 | 6.1 | 8.1 | 13 | 42 | 51 |
| 80 | 74 | 49 | 203 | 216 | 203 | 95 | 155 | 200 | 330 | 95 | 155 | 206 | 330 | 19 | 23 |
| 4 | 3.94 | 2.91 | 9 | 9.5 | 9 | 4.33 | 6.3 | 8.46 | 13 | 4.33 | 7.67 | 9.5 | 18.11 | 66 | 85 |
| 100 | 100 | 74 | 229 | 242 | 229 | 110 | 160 | 215 | 330 | 110 | 195 | 242 | 460 | 30 | 38.5 |
| 6 | 5.91 | 3.94 | 15.5 | 16 | 15.5 | 6.70 | 8.27 | 10.04 | 18.11 | 6.70 | 11.22 | 12.44 | 30.3 | 133 | 205 |
| 150 | 150 | 100 | 394 | 407 | 394 | 170 | 210 | 255 | 460 | 170 | 285 | 316 | 770 | 60 | 93 |
| 8 | 8 | 5.91 | 18 | 18.5 | 18 | 6.73 | 12.2 | 12.87 | 30.3 | 6.73 | 11.22 | 12.44 | 30.3 | 234 | 289 |
| 201 | 201 | 150 | 457 | 470 | 457 | 175 | 310 | 327 | 770 | 175 | 285 | 316 | 770 | 106 | 131 |
1/Do you have any Certification ?
Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1
2/Can we visit your factory?
Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3/Do you have quality control system?
Yes, we have ISO/PED certifications and our own quality control laboratory.
4/Can you arrange the shipment for us?
Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.
5/Can I get some samples?
We are glad to provide free samples to you, but the express fee will be on your charge.
6/What is your after-sale service?
We provide after-sale service and offer 100% guarantee on our products.
7/What is your main products?
Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.
8/Are you trading company or manufacturer
We are factory, and welcome to visit our factory
9/What is your MOQ
No MOQ, As your request .Normal size and material we have stock
